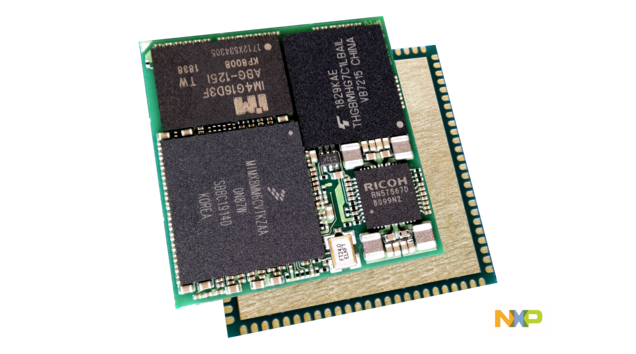

NXP i.MX 8M Mini 1.6 GHz Quad Cortex®-A53 | |
512MB/1GB DDR3L, 4GB eMMC | |
-25 °C to 85 °C | |
27 x 27 x 2.3 mm | |
Datasheet | |
Getting Started |
QS Module sind kleine, quadratische Einlöt-Computermodule mit lediglich 27 mm Kantenlänge. Die QFN ähnliche Bauform besitzt 100 Anschlüsse im 1mm Raster. Das zentrale Massepad dient neben EMV gerechter Signalführung zusätzlich auch zur Wärmeleitung.
i.MX 8M Mini applications processor
The i.MX 8M Mini applications processor blends advanced processing capabilities with sophisticated audio, video, and graphics to deliver low-power and high-performing solutions for embedded consumer and industrial applications.
Assembly of QS-Modules
Solder modules can be used just like any other component
Hardware and software integration of the newest 64-bit ARM-processor is becoming increasingly more sophisticated. Integrating everything on a single board can create some engineering challenges. Once a fully custom SoC-based board is built, it can’t be modified without delay and expense. That’s why it’s vital to know what its destination is before you design it. Despite this precaution, porting Linux or another OS to the custom hardware is an onerous task. To overcome this limitation, a SoM offers much more flexibility as the porting is already done. To further reduce costs, most projects are turning to module-based systems to increase time available for application development, reduce complexity and allow designers to focus on their core competencies.
Solder modules can be used just like any other component, and do not need to be handled and inserted manually like a SODIMM. With increasing demands on miniaturization, a SODIMM module requires more space and this can be important. The smallest soldered modules are only 27mm2 (1.1″) and this is the smallest space on which it is physically possible to mount the basic components.
In all types of designs, the connector has its cost. Even a SODIMM200 connector can cost a couple of dollars and push-fit connectors can cost a lot more. Soldering offers considerable strength and therefore the components are less vulnerable to shock and vibration.
The solder-down module’s integral ground plane provides a defined return path, avoiding ground loops and allowing efficient routing of tracks with low EMI. High-speed differential signals can be easily routed on a single layer. The ground plane also aids heat transmission to the baseboard, reducing the need for heat sinks.
In projects with BGA solutions, designers might face various problems. BGAs are very good for density, but they need high precision and it can only be inspected by through x-ray. SoMs in contact with the edges prove to be a better solution as it is possible to visually inspect the connections.
Pre-programmed
All modules will be shipped with a pre-programmed bootloader by default. To speed up the production process, the modules can also be pre-programmed to customer specifications. JEDEC version 5.0 introduces “Production State Awareness” to help avoid possible data corruption during soldering. Only a predefined part of the whole device’s available space can be supported by this feature.
Development Kits
QS8M QSBASE2 Evalkit
Linux is pre-installed and ready for application development. Other features include:
- QS module:
QS8M/MQ/1600/1024S/4GF/E85
QS8M/ND/1400/512S/4GF/E85 - Gb Ethernet
- MIPI Display Connector
- MIPI Camera Connectors
- USB
- 4-layer PCB
QS8M on Raspberry Pi Touchscreen
The QS8M EvalKit can be mounted directly to the official Raspberry Pi 7inch Touch screen.
- Touch Display works with our QSBASE2 out of the Box.
- Sources available in our Yocto Layer.
QSBASE4 Evalkit
Linux pre-installed and ready for application development. Other features include:
- QS module on sockets
- Gb Ethernet
- MIPI Display Connector
- Two port USB hub, type A connectors
- USB client & power supply, type C connector
- USB to UART bridge, micro-B connector
- 4-layer PCB
QSBASE4 on Raspberry Pi Touchscreen
The QSBASE4 EvalKit can be mounted directly to the official Raspberry Pi 7 inch Touch screen.
- Touch Display works out of the Box.
- Sources available in our Yocto Layer.
- Only version 1.1 is supported.
Varianten
Eine Übersicht der aktuellen Standardvarianten.
Kundenspezifische Versionen auf Anfrage.
Part Number | QS8M-MQ00 | QS8M-ND00 |
Part Name | QS8M/MQ/1600/1024S/4GF/E85 | QS8M/ND/1400/512S/4GF/E85 |
Processor | NXP i.MX8M Mini Quad 1.6 GHz | NXP i.MX8M Nano Dual 1.4 GHz |
SDRAM | 1 GiB | 512 MiB |
Flash | 4 GB | 4GB |
Display-IF | MIPI | MIPI |
Temperature | -25 °C to 85 °C | -25 °C to 85 °C |
Socketed Version
- 33mm square
- 2mm stacking height
- Two 80 pin connectors
- Easy to lock with screws
- Optional shielding cabinet
- 5.3 mm total height
Part Number | QS8M-MQ00/SOCK | QS8M-ND00/SOCK |
Dokumentation
Customer Area File History
Software
Long Term Linux Kernel 5.15 Support
Yocto Gatesgarth and Hardknott Support
Debian 11 (“bullseye”) Support
Neural networks on embedded devices
Build cross-platform desktop apps
Qt5 Cross-Platform Framework
Cross-Compile and Debug your C apps
QS-Standard
Benefit by using QS module family
The QS module family has very compact dimensions. They include a complete embedded System on Module with processor, PMIC, RAM and flash memory.
Because of the very dense packaging on the top side, there are no components on the bottom side of the module, cut-outs on the base board not required. The pin compatible family concept provides all important interfaces needed for embedded designs, e.g., USB, Gigabit-Ethernet, display and many serial interfaces.
Flexibility, high performance and easy integration
All signal connections located at the module edges, allowing easy optical inspection during production. The modules can be assembled by automatic pick & place machines without any mechanical assembly work necessary.
The pin-optimized QS concept enables the use of a simple, cost-effective 2-layer base board.
A development kit with schematics and bill of materials is available to support a quick evaluation and project start.
QSX vs. QS
- QSX is a QS module enlarged by 1 mm all around.
- The size hereby increased from 27 mm square to 29 mm square.
- In each corner this gives additional space for a total of 8 further pads which are used for PCIe and USB3.
- The inner 27 mm x 27 mm QS area remains identical, providing full compatibility.
Produktvergleich
QS Modules - Quick Selection Low to High End
part number | part name | CPU | MPU | # | MHz | MCU | MHz | RAM | ROM | GPU | VPU | NPU | Temperature |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
QSMP-1351 | QSMP/135C/256S/4GF/E85 | STM32MP135 | A7 | 1 | 650 | - | - | 256 MB | 4 GB | - | - | - | -25°C..85°C |
QSMP-1530C | QSMP/157C/256S/4GF/E85 | STM32MP157 | A7 | 2 | 650 | M4 | 209 | 256 MB | 4 GB | Y | - | - | -25°C..85°C |
QSMP-1570 | QSMP/157C/512S/4GF/E85 | STM32MP157 | A7 | 2 | 650 | M4 | 209 | 512 MB | 4 GB | Y | - | - | -25°C..85°C |
QS91-3110 | QS91/31C/512S/4GF/E85 | i.MX 91 | A55 | 1 | 1400 | - | - | 512 MB | 4 GB | - | - | - | -25°C..85°C |
QS8M-ND00 | QS8M/ND/1400/512S/4GF/E85 | i.MX 8M Nano | A53 | 2 | 1400 | M7 | 600 | 512 MB | 4 GB | Y | - | - | -25°C..85°C |
QSRZ-G2L1 | QSRZ/G2L/512S/4GF/I | RZ/G2L | A55 | 2 | 1200 | M33 | 200 | 512 MB | 4 GB | Y | Y | - | -40°C..85°C |
QS93-5210 | QS93/52C/1GS/4GF/I | i.MX 93 | A55 | 2 | 1700 | M33 | 250 | 1 GB | 4 GB | - | - | 0.5 TOPS | -40°C..85°C |
QSRZ-G2L0 | QSRZ/G2L/1GS/4GF/I | RZ/G2L | A55 | 2 | 1200 | M33 | 200 | 1 GB | 4 GB | Y | Y | - | -40°C..85°C |
QSMP-2550 | QSMP2/255F/1GS/4GF/I | STM32MP255 | A35 | 2 | 1500 | M33 | 400 | 1 GB | 4 GB | Y | Y | 1.35 TOPS | -40°C..85°C |
QS8M-MQ00 | QS8M/MQ/1600/1024S/4GF/E85 | i.MX 8M Mini | A53 | 4 | 1600 | M4 | 400 | 1 GB | 4 GB | Y | Y | - | -25°C..85°C |
QSXM-MM60 | QSXM/MM6C/2GS/4GF/E85 | i.MX 8M Mini | A53 | 4 | 1600 | M4 | 400 | 2 GB | 4 GB | Y | Y | - | -25°C..85°C |
QSXP-ML81 | QSXP/ML8C/2GS/8GF/E85 | i.MX 8M Plus | A53 | 4 | 1600 | M7 | 800 | 2 GB | 8 GB | Y | Y | 2.3 TOPS | -25°C..85°C |
