STM32MP157C | |
512MB DDR3L, 4GB eMMC | |
-25°C to 85°C | |
68 x 26 x 4 mm | |
Datasheet | |
Getting Started |

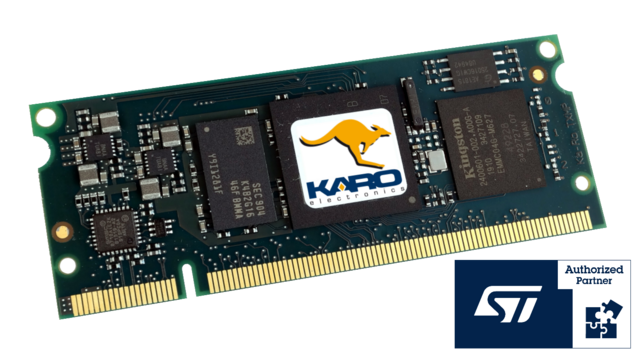

Das TXMP erweitert unsere TX Familie mit einem STM32MP157C Prozessor.
Development Kits
Linux Headless Development Kit
The TX Mainboard 7 is a ready-to-use development system for building applications based on the TX embedded processor boards.
Linux is pre-installed and ready for application development. Other features include:
- Single 5VDC power supply
- RJ45 Ethernet connector
- 3.5mm audio jack
- TX DIMM signals available on solder pads
- SD-Card socket
- RS232 Debug UART on SUB-D header
- RS232 UART on 10pin flat cable header
- RS485 UART on 10pin flat cable header
- CAN on 10pin flat cable header
- LVDS Display on Hirose DF13 connector
Part Number: TX00-SV70
Varianten
Eine Übersicht der aktuellen Standardvarianten.
Kundenspezifische Versionen auf Anfrage.
Part Number | TXMP-1570 |
Part Name | TXMP/157C/512S/4GF/E85 |
Processor | STM32MP157C |
SDRAM | 512 MiB |
Flash | 4 GB |
Display-IF | 24-bit RGB + 2-lane MIPI-DSI |
Temperature | -25 °C to 85 °C |
Deklarationen
Dokumentation
Customer Area File History
Software
Linux
Long Term Linux Kernel 5.15 Support
Yocto
Yocto Gatesgarth and Hardknott Support
Debian
Debian 11 (“bullseye”) Support
Machine Learning
Neural networks on embedded devices
Electron
Build cross-platform desktop apps
Qt
Qt5 Cross-Platform Framework
Visual Studio Code
Cross-Compile and Debug your C apps
