NXP i.MX 8M Plus 1.6 GHz Quad Cortex®-A53 | |
2GB LPDDR4, 8GB eMMC | |
-30 °C to 85 °C | |
68 x 26 x 4 mm | |
Datasheet |

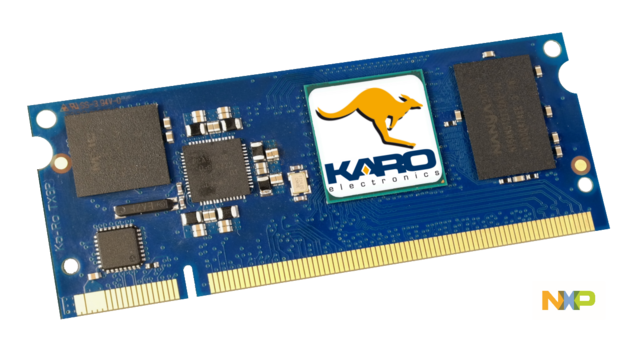

The TX8P is the latest member of the TX module series, specially designed for i.MX multimedia processors. TX modules are complete computers, implemented on a board smaller than a credit card, and ready to be designed into your embedded system. With a focus on longevity, TX modules includes an i.MX processor, power supply and memory. The TX8P excel in machine learning, vision, advanced multimedia and industrial IoT applications. Elevating edge intelligence, the TX8P is a solid foundation for smart homes to smart cities, Industry 4.0 and beyond.

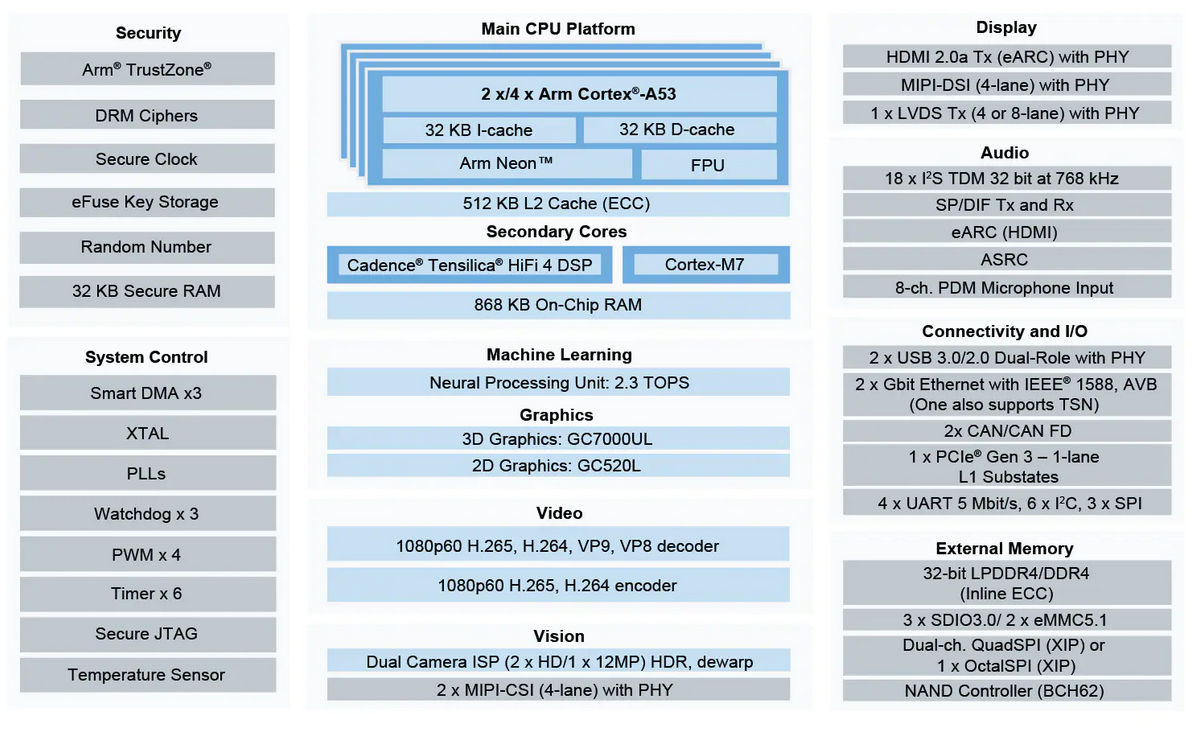

i.MX 8M Plus Applications Processor
Machine learning, vision, advanced multimedia and industrial IoT applications
Development Kits
TX8P Linux Development Kit
The TX8P development kit contains a 7” TFT display for development and prototyping of industrial display applications.
Linux is pre-installed and ready for application development. Other features include:
- Single 12VDC power supply
- Mini-PCIe socket
- RJ45 Ethernet connector
- 3.5mm audio jack
- 120-pin header expansion ports
- MIPI-CSI camera interface on DF13
- Micro SD-Card socket
Linux Headless Development Kit
The TX Mainboard 7 is a ready-to-use development system for building applications based on the TX embedded processor boards.
Linux is pre-installed and ready for application development. Other features include:
- Single 5VDC power supply
- RJ45 Ethernet connector
- 3.5mm audio jack
- TX DIMM signals available on solder pads
- SD-Card socket
- RS232 Debug UART on SUB-D header
- RS232 UART on 10pin flat cable header
- RS485 UART on 10pin flat cable header
- CAN on 10pin flat cable header
- LVDS Display on Hirose DF13 connector
Varianten
Eine Übersicht der aktuellen Standardvarianten.
Kundenspezifische Versionen auf Anfrage.
Part Number | TX8P-ML81 |
Part Name | TX8P/ML8C/2GS/8GF/E85 |
Processor | NXP i.MX 8M Plus |
SDRAM | 2 GiB |
Flash | 8 GB |
Display-IF | LVDS / MIPI-DSI / HDMI |
Temperature | -30 °C to 85 °C |
Deklarationen
Dokumentation
Customer Area File History
Software
Produktvergleich
TX | QS | Silicon Vendor | SOC | Core | # | Clock | Grade | L2-Cache | I-Cache | D-Cache | Emb. SRAM | NEON | VFP |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TX93 | QS93 | NXP | i.MX 93 | Cortex-A55 | 2 | 1.5 GHz | Ind. | 64 KB | 32 KB | 32 KB | 640 KB | √ | √ |
TXRZ | QSRZ | RENESAS | RZ/G2L | Cortex-A55 | 2 | 1.2 GHz | Ind. | 256 KB (L3) | 32 KB | 32 KB | 128 KB | √ | √ |
TX8P | QSXP | NXP | i.MX8M Plus | Cortex-A53 | 4 | 1.6 GHz | Ind. | 512 KB | 32 KB | 32 KB | 256 KB | √ | √ |
TX8M | QS8M | QSXM | NXP | i.MX8M Mini | Cortex-A53 | 4 | 1.6 GHz | Ind. | 512 KB | 32 KB | 32 KB | 256 KB | √ | √ |
TX8M | QS8M | NXP | i.MX8M Nano | Cortex-A53 | 2 | 1.4 GHz | Ind. | 512 KB | 32 KB | 32 KB | 256 KB | √ | √ |
TX6QP | NXP | i.MX6QuadPlus | Cortex-A9 | 4 | 800 MHz | Ind. | 1 MB | 32 KB | 32 KB | 256 KB | √ | - | |
TX6Q | NXP | i.MX6Quad | Cortex-A9 | 4 | 1 GHz | Com. | 1 MB | 32 KB | 32 KB | 256 KB | √ | - | |
TX6DL | NXP | i.MX6DualLite | Cortex-A9 | 2 | 800 MHz | Ind. | 512 KB | 32 KB | 32 KB | 128 KB | √ | - | |
TX6S | NXP | i.MX6Solo | Cortex-A9 | 1 | 800 MHz | Ind. | 512 KB | 32 KB | 32 KB | 128 KB | √ | - | |
TX6UL | NXP | i.MX6UltraLite | Cortex-A7 | 1 | 528 MHz | Ind. | 128 KB | 32 KB | 32 KB | 128 KB | √ | - | |
TXMP | QSMP | STMicroelectronics | STM32MP1 | Cortex-A7 | 1-2 | 650 MHz | Ind. | 256 KB | 32 KB | 32 KB | 708 KB | √ | √ |
TX | QS | NPU | ISP | Graphics Acceleration | Video Codec | Camera Interface | LCD Interface |
---|---|---|---|---|---|---|---|
TX93 | QS93 | √ | - | √ | - | √ | LVDS |
TXRZ | QSRZ | - | - | √ | √ | √ (TXRZ) / - (QSRZ) | 24bit and MIPI |
TX8P | √ | √ | √ | √ | √ | LVDS + MIPI + HDMI | |
QSXP | √ | √ | √ | √ | √ | MIPI | |
TX8M | QS8M | QSXM | - | - | √ | √ (8M Mini) / - (8M Nano) | √ | MIPI |
TX8M | - | - | √ | √ | √ | LVDS | |
TX6 | - | - | √ | √ | √ | 24bit or LVDS | |
TXUL | - | - | - | - | √ | 24bit | |
QSMP | - | - | - | - | √ | 24bit | |
TXMP | QSMP | - | - | √ | - | √ | 24bit and MIPI |
TX | QS | RAM Size | RAM Type | RAM width | ROM Size | ROM Type |
---|---|---|---|---|---|---|
TX93 | QS93 | 1 GB | LPDDR4 | 16 bit | 4 GB | eMMC |
TXRZ | QSRZ | 512MB / 1 GB | DDR3L-1333 | 16 bit | 4 GB | eMMC |
TX8P | QSXP | 2 GB | LPDDR4 | 32 bit | 8 GB | eMMC |
QSXM | 2 GB | LPDDR4 | 32 bit | 4 GB | eMMC | |
TX8M - MINI | 1 GB / 2 GB | DDR3-1600 | 32 bit | 4 GB | eMMC | |
TX8M - NANO | 512 MB | DDR3-1600 | 16 bit | 4 GB | eMMC | |
QS8M | 512MB / 1 GB | DDR3-1600 | 16 bit | 4 GB | eMMC | |
TX6QP | 2 GB | DDR3-1066 | 64 bit | 4 GB | eMMC | |
TX6Q | 1 GB | DDR3-1066 | 64 bit | 128 MB / 8 GB | SLC NAND / eMMC | |
TX6DL | 1 GB | DDR3-800 | 64 bit | 128 MB / 4 GB | SLC NAND / eMMC | |
TX6S | 256 MB / 512 MB | DDR3-800 | 16 bit / 32 bit | 128 MB / 4 GB | SLC NAND / eMMC | |
TX6UL | 256 MB | DDR3-800 | 16 bit | 128 MB / 4 GB | SLC NAND / eMMC | |
TXMP | QSMP | 256 MB / 512 MB | DDR3-1066 | 16 bit | 128 MB / 4 GB | SLC NAND / eMMC |
USB | Ethernet | UART | I2C | SPI | SD / MMC | Serial Audio | CAN | SATA | External Memory Interface | |
---|---|---|---|---|---|---|---|---|---|---|
TX93 | 2 | 2 | 8 | √ | √ | 1 | 2 | 2 | - | - |
QS93 | 2 | 2 | 5 | √ | √ | 1 | 1 | 2 | - | - |
TXRZ | 2 | 2 | 7 | √ | √ | 1 | 2 | 2 | - | - |
QSRZ | 2 | 1 | 4 | √ | √ | 1 | 1 | 2 | - | - |
TX8P | 2 | 2 | 4 | √ | √ | 2 | 4 | 2 | - | PCIe |
TX8M | 2 / 1 | 1 | 4 | √ | √ | 2 | 4 | - | - | PCIe |
QS8M | 2 / 1 | 1 | 4 | √ | √ | 1 | 1 | - | - | - |
QSXM | 2 | 1 | 4 | √ | √ | 1 | 1 | - | - | PCIe |
QSXP | 2 | 1 | 4 | √ | √ | 1 | 1 | 2 | - | PCIe |
TX6QP | 2 | 1 | 5 | √ | √ | 2 | 2 | 2 | √ | 16 bit / PCIe |
TX6Q | 2 | 1 | 5 | √ | √ | 2 | 2 | 2 | √ | 16 bit / PCIe |
TX6DL | 2 | 1 | 5 | √ | √ | 2 | 2 | 2 | - | 16 bit / PCIe |
TX6S | 2 | 1 | 5 | √ | √ | 2 | 2 | 2 | - | 16 bit / PCIe |
TX6UL | 2 | 2 | 8 | √ | √ | 2 | 1 | 2 | - | - |
TXMP | 2 | 1 | 8 | √ | √ | 1 | 1 | 2 | - | - |
QSMP | 2 | 1 | 7 | √ | √ | 1 | 1 | 2 | - | - |
Supply Voltage | U-Boot [mW] | Linux [mW] | Sleep [mW] | |
---|---|---|---|---|
TX93-5210 | 5V / 3.3V | 1110 / 1025 | 725 / 655 | 150 / 125 |
QSRZ-G2L0 | 3.3V | 782 | 657 | 500 [1] |
TXRZ-G2L0 | 5V / 3.3V | 1040 / 941 | 960/ 871 | 985 / 900 [1] |
TX8P-ML81 | 5V / 3.3V | 1900 / 1800 | 1685/ 1600 | 115 / 100 |
TX8M-1610 | 5V / 3.3V | 1110 / 1110 | 900 / 880 | 130 / 120 |
TX8M-1620 | 5V / 3.3V | 1275 / 1277 | 1055 / 1059 | 260 / 244 |
TX8M-ND00 | 5V / 3.3V | 860 / 845 | 670 / 650 | 85 / 80 |
TX6Q-8037 | 5V | 2400 | 850 | 180 |
TX6Q-1030 | 5V / 3.3V | 2125 / 2015 | 800 / 760 | 80 / 80 |
TX6U-8033 | 5V / 3.3V | 1925 / 1840 | 800 / 760 | 80 / 80 |
TX6S-8034 | 5V / 3.3V | 1425 / 1310 | 550 / 530 | 80 / 80 |
TXUL-5010 | 5V / 3.3V | 710 / 620 | 550 / 460 | 29 / 28 |
TXUL-5011 | 5V / 3.3V | 760 / 650 | 550 / 460 | 29 / 22 |
TXUL-8013 | 5V / 3.3V | 775 / 675 | 365 / 340 | 100 / 76 |
TXMP-1570 | 5V / 3.3V | 875 / 775 | 800 / 695 | 60 / 45 |
QSMP-1570 | 3.3V | 660 | 560 | 20 |
QSMP-1530 | 3.3V | 620 | 520 | 15 |
QS8M-MQ00 | 3.3V | 840 | 510 | 60 |
QS8M-ND00 | 3.3V | 670 | 500 | 45 |
QSXM-MM60 | 3.3V | 1161 | 739 | 40 |
QSXP-ML81 | 3.3V | 1520 | 1230 | 86 |
[1] Renesas RZ/G2L has no different power domains, voltages cannot be switched off and DRAM self-refresh is not supported.
glmark2 score | CoreMark | DhryStone | Whetstone [MIPS] | Memcpy [MB/s] | Memset [MB/s] | STREAM copy [MB/s] | STREAM scale [MB/s] | STREAM add [MB/s] | STREAM triad [MB/s] | |
---|---|---|---|---|---|---|---|---|---|---|
TX93-5210 | - | 12762 | 9330534 | 32258 | 2657 | 4725 | 5738 | 3307 | 4230 | 4239 |
QSMP-1570 | 74 | 3788 | 2199518 | 10204 | 620 | 1437 | 1345 | 794 | 705 | 584 |
QS8M-ND00 | 192 | 9222 | 6922571 | 24390 | 372 | 1228 | 808 | 814 | 710 | 677 |
TXRZ-G2L0 | 212 | 8853 | 6850488 | 22727 | 1095 | 2322 | 2358 | 2286 | 2363 | 2377 |
QS8M-MQ00 | 280 | 21075 | 7912644 | 27777 | 1132 | 2830 | 2570 | 2647 | 2341 | 2004 |
QSXM-MM60 | 361 | 21028 | 7912644 | 27777 | 1885 | 8533 | 4243 | 2950 | 2716 | 2301 |
QSXP-ML81 | 863 | 21104 | 7912957 | 27777 | 2008 | 10690 | 4673 | 2910 | 2617 | 2216 |
