NXP i.MX 8M Mini 1.6 GHz Quad Cortex®-A53 | |
512MB/1GB/2GB DDR3L, 4GB eMMC | |
-25 °C to 85 °C | |
68 x 26/28 x 4 mm | |
Datasheet | |
Getting Started |

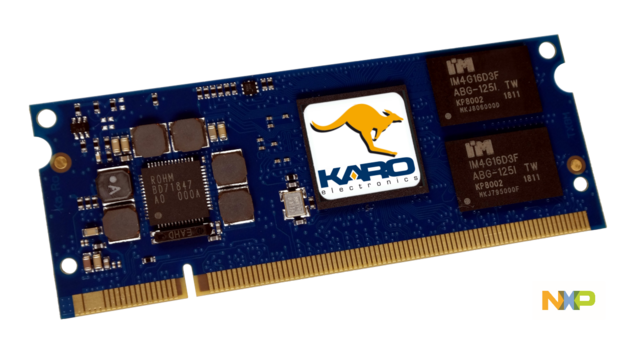

The TX8M is a member of the TX module series, specially designed for i.MX multimedia processors. TX modules are complete computers, implemented on a board smaller than a credit card, and ready to be designed into your embedded system. With a focus on longevity, TX modules includes an i.MX processor, power supply and memory.
Development Kits
TX8M Linux Development Kit
The TX8M development kit contains a 7” TFT display for development and prototyping of industrial display applications.
Linux is pre-installed and ready for application development. Other features include:
- Single 12VDC power supply
- Mini-PCIe socket
- RJ45 Ethernet connector
- 3.5mm audio jack
- 120-pin header expansion ports
- MIPI-CSI camera interface on DF13
- Micro SD-Card socket
Varianten
Eine Übersicht der aktuellen Standardvarianten.
Kundenspezifische Versionen auf Anfrage.
Part Number | TX8M-1610 | TX8M-1620 | TX8M-ND00 |
Part Name | TX8MMQ/1600/1024S/4GF/E85 | TX8MMQ/1600/2048S/4GF/LVDS/E85 | TX8MND/1400/512S/4GF/E85 |
Processor | NXP i.MX 8M Mini Quad | NXP i.MX 8M Mini Quad | NXP i.MX8M Nano Dual |
SDRAM | 1 GiB | 2 GiB | 512 MiB |
Flash | 4 GB | 4 GB | 4GB |
Display-IF | MIPI | LVDS | MIPI |
Temperature | -25 °C to 85 °C | -25 °C to 85 °C | -25 °C to 85 °C |
Deklarationen
Dokumentation
Customer Area File History
Software
Long Term Linux Kernel 5.15 Support
Yocto Gatesgarth and Hardknott Support
Debian 11 (“bullseye”) Support
Neural networks on embedded devices
Build cross-platform desktop apps
Qt5 Cross-Platform Framework
Cross-Compile and Debug your C apps
