NXP i.MX6 Solo/DualLite/Quad/QuadPlus | |
up to 2GB DDR3L, up to 8GB eMMC | |
-40 °C to 85 °C / -25 °C to 85 °C | |
68 x 31 x 4 mm | |
Datasheet |
One of the smallest CoM in the world, the Ka-Ro TX6 is based on NXP’s i.MX6 processor. Mounted on the base board, the module only takes up just under 26 cm² (36 mm x 71 mm including the socket) and facilitates a maximum construction height of just 4.5 mm. As the latest member of the Ka-Ro CoM family, the TX6 Series boasts powerful CPU performance for challenging graphical and multimedia applications.
| 4 x Cortex-A9, 1 GHz (TX6Q) |
| 256MB - 2GB DDR3L |
| OpenGL® ES 1.1/2.0/3.0, OpenCL™ 1.1 EP, OpenVG™ 1.1, 2DBLT, 8 layer composition, 4 shaders—720 MHz, embedded prefetch & resolve engine |
| OpenGL® ES 1.1/2.0/3.0, OpenCL™ 1.1 EP, OpenVG™ 1.1, 2DBLT, 2 layer composition, 4 shaders 594 MHz |
| OpenGL ES 1.1/2.0/3.0, OpenVG 1.1, 2DBLT, 2 layer composition, 1 shader—528 MHz |
| OpenGL ES 1.1/2.0/3.0 OpenVG 1.1, 2DBLT, 1 shader—528 Mhz |
| Secure Boot, RNG, Secure storage, AES-128, DES 3DES, ARC4, MD5, SHA-1, SHA-224, SHA-256, OTP Space |
| 24-Bit RGB |
| HD (1080 + 720)p30 |
| HD 1080p30 |
| 2x USB with PHY |
| 10/100 Ethernet |
| 4x UART, 4x I2C, |

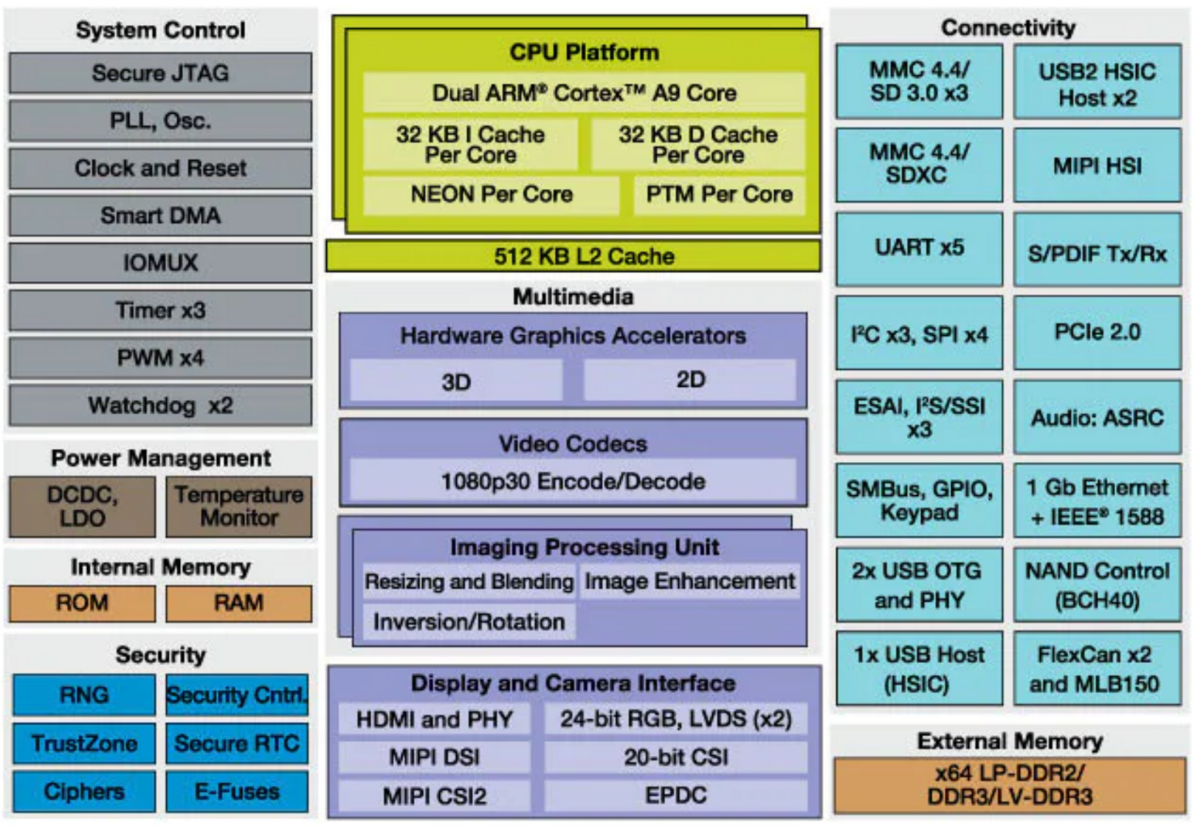

The i.MX 6 series of applications processors is a feature- and performance-scalable multicore platform that includes single-, dual- and quad-core families based on the ARM® Cortex® architecture.
TARGET APPLICATIONS
- Automotive infotainment
- Digital signage
- Digital cluster
- E-Readers
- Human-machine interface
- Home energy management systems
- In-flight entertainment
- Intelligent industrial control systems
- IoT gateways
- IP phones
- Point-of-sale devices
- Portable medical devices
- Tablets
For more information regarding i.MX 6 processors, see the NXP product page.
Development Kits
Linux Headless Development Kit
The TX Mainboard 7 is a ready-to-use development system for building applications based on the TX embedded processor boards.
Linux is pre-installed and ready for application development. Other features include:
- Single 5VDC power supply
- RJ45 Ethernet connector
- 3.5mm audio jack
- TX DIMM signals available on solder pads
- SD-Card socket
- RS232 Debug UART on SUB-D header
- RS232 UART on 10pin flat cable header
- RS485 UART on 10pin flat cable header
- CAN on 10pin flat cable header
- LVDS Display on Hirose DF13 connector
Varianten
Eine Übersicht der aktuellen Standard Varianten. Kundenspezifische Versionen auf Anfrage.
TX6S - i.MX6 Solo
Part Number | TX6S-8034 | TX6S-8134 | TX6S-8035 | TX6S-8135 |
Part Name | TX6S/800/256S/128F/I | TX6S/800/256S/128F/LVDS/I | TX6S/800/512S/4GF/E85 | TX6S/800/512S/4GF/LVDS/E85 |
Processor | i.MX6S7 | i.MX6S7 | i.MX6S7 | i.MX6S7 |
SDRAM | 256 MiB | 256 MiB | 512 MiB | 512 MiB |
Flash | 128 MiB SLC NAND | 128 MiB SLC NAND | 4 GiB eMMC | 4 GiB eMMC |
Display-IF | 24-bit TTL | LVDS | 24-bit TTL | LVDS |
RTC | - | - | - | - |
Temperature | -40 °C to 85 °C | -40 °C to 85 °C | -25 °C to 85 °C | -25 °C to 85 °C |
TX6DL - i.MX6 DualLite
Part Number | TX6U-8030 | TX6U-8130 | TX6U-8033 | TX6U-8133 |
Part Name | TX6DL/800/1024S/128F/I | TX6DL/800/1024S/128F/LVDS/I | TX6DL/800/1024S/4GF/E85 | TX6DL/800/1024S/4GF/LVDS/E85 |
Processor | i.MX6U7 | i.MX6U7 | i.MX6U7 | i.MX6U7 |
SDRAM | 1 GiB | 1 GiB | 1 GiB | 1 GiB |
Flash | 128 MiB SLC NAND | 128 MiB SLC NAND | 4 GiB eMMC | 4 GiB eMMC |
Display-IF | 24-bit TTL | LVDS | 24-bit TTL | LVDS |
RTC | DS1339 | DS1339 | - | - |
Temperature | -40 °C to 85 °C | -40 °C to 85 °C | -25 °C to 85 °C | -25 °C to 85 °C |
TX6Q - i.MX6 Quad
Part Number | TX6Q-1030 | TX6Q-1130 | TX6Q-1036 |
Part Name | TX6Q/1000/1024S/128F | TX6Q/1000/1024S/128F/LVDS | TX6Q/1000/1024S/8GF |
Processor | i.MX6Q5 | i.MX6Q5 | i.MX6Q5 |
SDRAM | 1 GiB | 1 GiB | 1 GiB |
Flash | 128 MiB SLC NAND | 128 MiB SLC NAND | 8 GiB eMMC |
Display-IF | 24-bit TTL | LVDS | 24-bit TTL |
RTC | DS1339 | DS1339 | - |
Temperature | -20 °C to 85 °C | -20 °C to 85 °C | -20 °C to 85 °C |
TX6QP - i.MX6 QuadPlus
Part Number | TX6Q-8037 | TX6Q-8137 |
Part Name | TX6QP/800/2GS/4GF/I | TX6QP/800/2GS/4GF/LVDS/I |
Processor | i.MX6QP7 | i.MX6QP7 |
SDRAM | 2 GiB | 2 GiB |
Flash | 4 GiB HIREL eMMC | 4 GiB HIREL eMMC |
Display-IF | 24-bit TTL | LVDS |
RTC | - | - |
Temperature | -40 °C to 85 °C | -40 °C to 85 °C |
Deklarationen
Dokumentation
Customer Area File History
Software
Long Term Linux Kernel 5.15 Support
Yocto Gatesgarth and Hardknott Support
Debian 11 (“bullseye”) Support
Neural networks on embedded devices
Build cross-platform desktop apps
Qt5 Cross-Platform Framework
Cross-Compile and Debug your C apps
